Place of Origin:
Langfang, Hebei, China
Certification:
ISO9001
Light Gauge Steel Framing Galvanized Metal Stud Track Ceiling Keel Drywall Partition
This light gauge steel framing set covers partition studs and ceiling tracks, built from fire resistant galvanized steel that keeps its shape under heat.
Light steel keel is roll formed in one single cold bending pass; the C stud and U track combine into a stable metal frame skeleton, with accurate web and flange dimensions and uniform stiffness. It carries load steadily and resists deformation, so the installed wall keeps a high flatness. Together with gypsum board it finishes drywall partition and suspended ceiling work quickly, fitting all kinds of residential, commercial and industrial projects.
The steel is non combustible, and once it is lined with fire rated board the assembly slows flame spread and shelters escape routes in commercial buildings.
Every stud and track is cut to the length the buyer asks for, so awkward room heights and long corridors are covered without on site trimming.

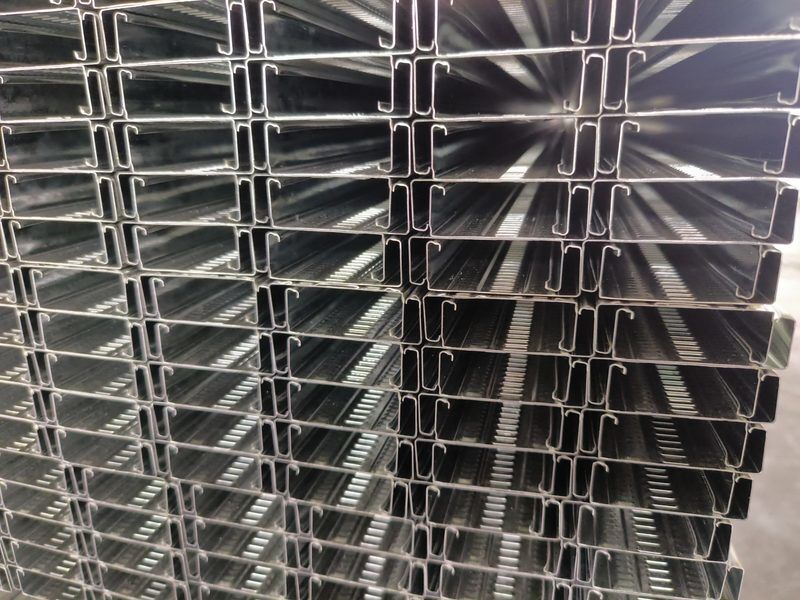

C stud and U channel clip together into a rigid cage, giving a straight wall line that stays true through boarding, taping and finishing.
Galvanized surfaces shrug off damp air and daily wear, so the framing keeps working in kitchens, laundry rooms and semi exposed structures.
The dry running method is quiet and dust light, letting crews renovate occupied buildings with very little disruption to the tenants.
| Ceiling keel | Partition keel | ||
| Height(mm) | 12/15/19/22/27 | Height(mm) | 20/22/25 |
| Width(mm) | 22/37/50/60 | Width(mm) | 50/75/100/150 |
| Length(m) | 2-6 | Length(m) | 2-6 |
| Thickness(mm) | 0.4/0.5/0.6 | Thickness(mm) | 0.4-0.6 |
| Surface Treatment | Galvanized zinc coated | Surface Treatment | Galvanized zinc coated |
| Material | Galvanized steel / thin steel sheet | Material | Galvanized steel / thin steel sheet |
| Application | Suspended Ceiling System | Application | Drywall Partition |
1.What's your advantage?
A: Honest business with competitive price and professional service on export process.
2.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedbackimmediately if you are not pleased with our quality or service.
3.Where are you? Can l visit you?
A: Sure,welcome to you visit our factory at any time.
4.How about the delivery time?
A: Under the premise of no force majeure , the delivery time is 7-25 days
5.What kind of payment does your company support?
A: T/T , Western Union are all accepted if you have other payment,please contact me.
