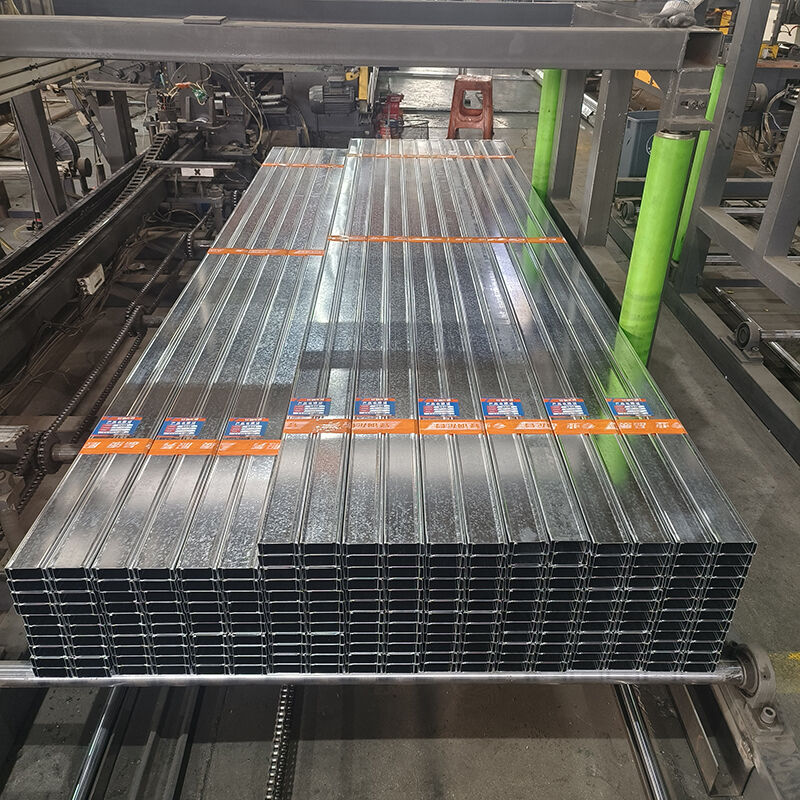

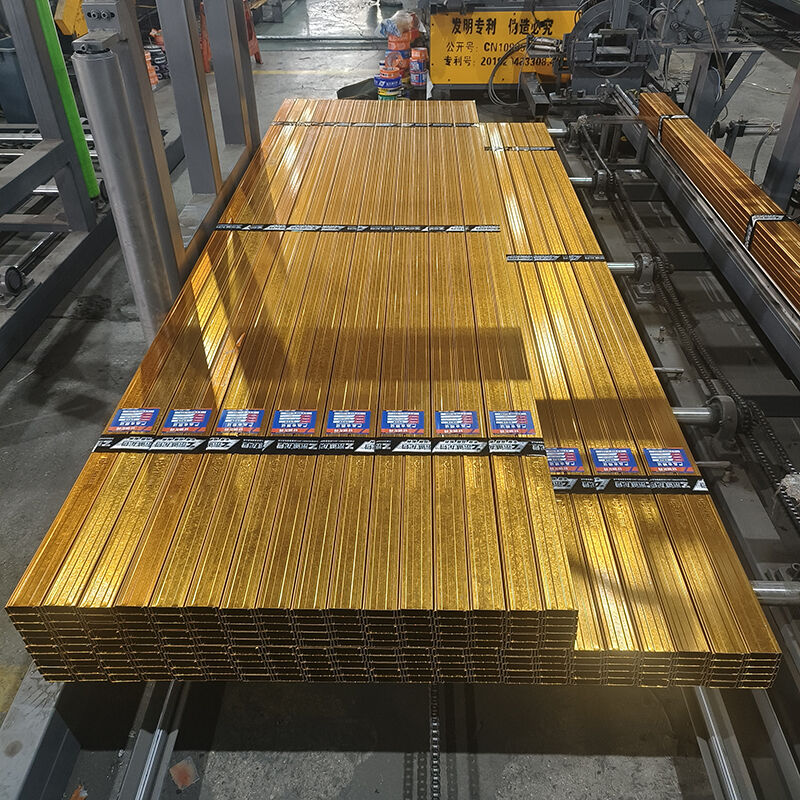

High Quality Galvanized Steel Partition Wall/ Drywall Metal Studs and Tracks

High Quality Galvanized Steel Partition Wall/ Drywall Metal Studs and Tracks

Product Description:

Light steel keel ceiling is mainly composed of main keel and auxiliary keel, and its size standards vary depending on the purpose and design requirements. As the main load-bearing structure of the ceiling, the size and strength of the main keel have a crucial impact on the overall performance of the ceiling. The common length of the main keel is generally 3000mm or 3600mm, which can ensure the stability and load-bearing capacity of the ceiling. In terms of width, the main keel is usually 38mm or 50mm, which can meet the installation requirements of different ceiling panels. In terms of thickness, the thickness of the main keel ranges from 0.3mm to 0.7mm, and the selection of thickness should be based on the load-bearing requirements and fire rating of the ceiling.

Features:

Lightweight and High Strength: With a self weight of only about 3-4 kg/m ², it is much lower than traditional brick walls or wooden structures, but has high strength and can withstand high loads (such as a single point hanging force of over 1000N)

Excellent fire resistance: The steel itself is resistant to high temperatures, and when combined with fire-resistant gypsum board or mineral wool board, the fire resistance limit can reach 1.0-1.6 hours, meeting the requirements of building fire protection regulations

Good seismic performance: using flexible connection structures (such as sliding connectors) to absorb energy through sliding support during earthquakes, reducing structural damage

Convenient and efficient construction: using prefabricated technology, dry operation as the main method, short construction period, no wet operation, reducing construction waste, suitable for rapid decoration or renovation

Environmental protection and energy conservation: materials can be 100% recycled, supporting board recycling rate is high, construction process pollution is small, in line with green building and "dual carbon" policy orientation

Excellent sound insulation performance: Fill the cavity of the keel with rock wool or glass wool, and the sound insulation of the 180mm thick partition wall can reach 45dB

Technical Parameters:

FAQ:
