Drywall Galvanized Metal Stud And Track Wall Framing Resilient Channel Stud Strack For Drywall

Drywall Galvanized Metal Stud And Track Wall Framing Resilient Channel Stud Strack For Drywall

MOQ: 1000 pieces
Price: $1.41 - $1.81 (3m)
Payment Terms: T/T, PayPal, Xtransfer
Supply Ability: 50000 pieces per day
Detail Information
Place of Origin:
Langfang, Hebei, China
Certification:
ISO9001
Surface Treatment:
Galvanized, Zinc Coated
Material:
Galvanized Steel
Feature:
Fireproof Rustpro
Shape:
C TYPE, U Type, Customized
Installation:
Easy Installation
Design Style:
Modern
Use:
Decoration Ceiling
Raw Material:
Galvnaized Steel Coil
Packaging Details:
Wooden frame or cardboard box packaging, customizable
Product Description

Drywall Galvanized Metal Stud and Track Wall Framing Resilient Channel Stud Strack for Drywall






Product Description:



Galvanized light steel keel is a new type of building material widely used in modern construction and decoration engineering, mainly used for the support system of suspended ceilings, partition walls, and floor structures. It is known for its lightweight, high strength, and corrosion resistance, making it an ideal alternative to traditional wooden keels and other heavy building materials.


Galvanized light steel keel is a type of building component made of cold-rolled galvanized steel sheet as raw material and formed through cold bending processing. The thickness of the galvanized layer is generally between 60g/m ² and 275g/m ², used to protect the steel plate from oxidation and corrosion. The keel is divided into C-shaped, U-shaped, T-shaped, etc. according to the cross-sectional shape, with various specifications to meet different building needs.



Features:



Lightweight and High Strength: With a self weight of only about 3-4 kg/m ², it is much lower than traditional brick walls or wooden structures, but has high strength and can withstand high loads (such as a single point hanging force of over 1000N)



Excellent fire resistance: The steel itself is resistant to high temperatures, and when combined with fire-resistant gypsum board or mineral wool board, the fire resistance limit can reach 1.0-1.6 hours, meeting the requirements of building fire protection regulations



Convenient and efficient construction: using prefabricated technology, dry operation as the main method, short construction period, no wet operation, reducing construction waste, suitable for rapid decoration or renovation


Environmental protection and energy conservation: materials can be 100% recycled, supporting board recycling rate is high, construction process pollution is small, in line with green building and "dual carbon" policy orientation


Excellent sound insulation performance: Fill the cavity of the keel with rock wool or glass wool, and the sound insulation of the 180mm thick partition wall can reach 45dB









Technical Parameters:



Ceiling keel
Partition keel
Height(mm)
12/15/19/20/22/27
Height(mm)
20/22/24
width(mm)
22/37/38/50/60
width(mm)
50/75/100/150
Length(m)
3-6
Length(m)
3-6
Thickness(mm)
0.4-1.0
Thickness(mm)
0.4-1.2
Application
Suspended Ceiling System
Application
Partition wall use

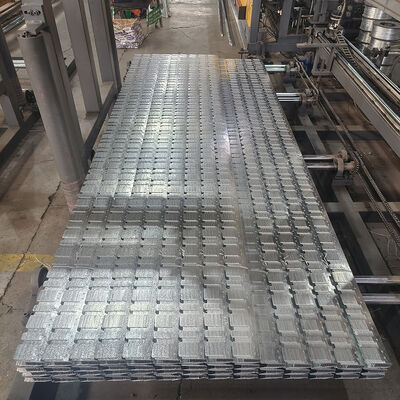

Drywall Galvanized Metal Stud And Track Wall Framing Resilient Channel Stud Strack For Drywall 0

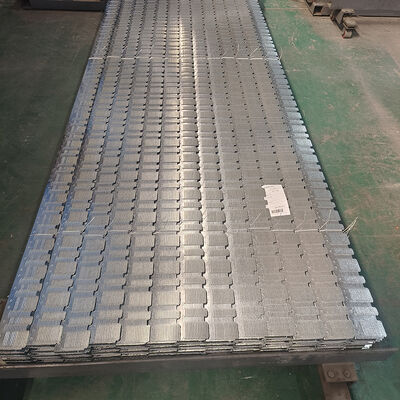

Drywall Galvanized Metal Stud And Track Wall Framing Resilient Channel Stud Strack For Drywall 1

Drywall Galvanized Metal Stud And Track Wall Framing Resilient Channel Stud Strack For Drywall 2





FAQ:



1.What's your advantage?
A: Honest business with competitive price and professional service on export process.


2.Can you give warranty of your products?

A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedbackimmediately if you are not pleased with our quality or service.


3.Where are you? Can l visit you?
A: Sure,welcome to you visit our factory at any time.


4.How about the delivery time?
A: Under the premise of no force majeure , the delivery time is 7-25 days


5.What kind of payment does your company support?
A: T/T , Western Union are all accepted if you have other payment,please contact me.
