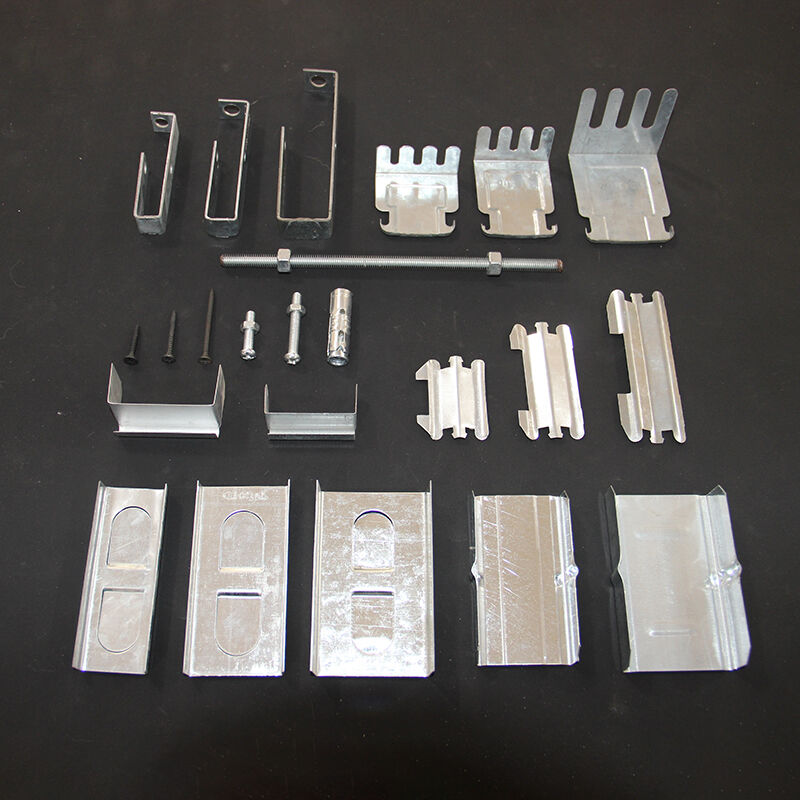

Gypsum Metal Furring Accessories Drywall Metal Channel Stud And Track

Metal Furring Accessories Drywall Metal Channel Stud And Track Gypsum Accessories Ceiling Grid Components

Product Description:

Metal furring has become a preferred choice in modern construction due to its superior strength, long service life, and adaptability in diverse building environments. As a lightweight yet robust framing solution, it is widely used for ceilings, walls, and suspended systems in both residential and commercial structures. Its performance under the country’s tropical climate conditions—characterized by high humidity, frequent rainfall, and extreme temperatures—makes it a more reliable alternative to traditional wood furring.

Features:

Made of galvanized steel sheet or alloy steel material, with low density and light weight (only one-third of the weight per unit area of traditional wooden keel), it greatly reduces building loads and is easy to transport and install.

The thickness of the surface galvanized layer is ≥ 8 μ m (superior products ≥ 14 μ m), effectively isolating oxygen and moisture. It can withstand corrosion for more than 15 years in humid environments such as bathrooms and basements.

Hanging components: The upper ceiling accessories must withstand a load of ≥ 2000N (equivalent to 200kg static pressure), with a residual deformation of ≤ 2.0mm; the non upper ceiling accessories must withstand a load of ≥ 1200N to meet the safety requirements of different scenarios.

Pendant: The cladding keel connector can withstand a lateral tension of ≥ 600N, ensuring a tight bond between the double-layer skeleton.

Under the static load test of the keel component, the deflection of the load-bearing keel is ≤ 5.0mm (L/200), and the deflection of the cladding keel is ≤ 10.0mm (L/100), far exceeding the national standard and adapting to dynamic loads such as earthquakes and wind pressure.
