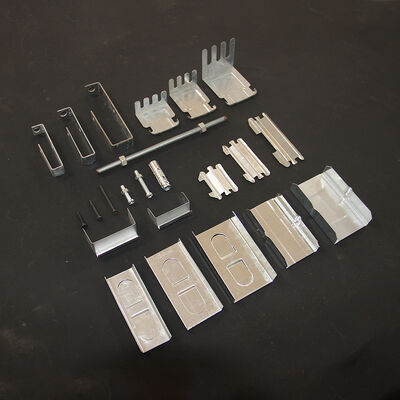

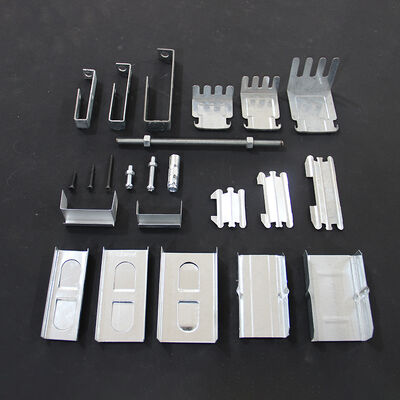

Celling Board Metal Stud Accessories Galvanized Light Steel Keel Fittings

Celling Board Accessories Stud And Track Accessories Galvanized Light Steel Keel Fittings

Product Description:

The Metal Stud system is widely used in building ceilings, partitions, roofs, and other projects, with advantages such as light weight, high strength, and convenient construction. The quality and installation process of accessories directly affect the performance and service life of the entire system, so special attention should be paid when selecting and constructing. Our partition and ceiling systems have high compressive strength, flame retardancy, and good sound and heat insulation performance, making them suitable for various housing decoration needs.

Features:

Made of galvanized steel sheet or alloy steel material, with low density and light weight (only one-third of the weight per unit area of traditional wooden keel), it greatly reduces building loads and is easy to transport and install.

The thickness of steel plates is usually 0.5-1.5mm, and the section moment of inertia is enhanced through cold bending forming technology, which significantly improves the bending and shear resistance compared to wooden materials, ensuring the stability of large-span structures.

The thickness of the surface galvanized layer is ≥ 8 μ m (superior products ≥ 14 μ m), effectively isolating oxygen and moisture. It can withstand corrosion for more than 15 years in humid environments such as bathrooms and basements.

Pendant: The cladding keel connector can withstand a lateral tension of ≥ 600N, ensuring a tight bond between the double-layer skeleton.

Under the static load test of the keel component, the deflection of the load-bearing keel is ≤ 5.0mm (L/200), and the deflection of the cladding keel is ≤ 10.0mm (L/100), far exceeding the national standard and adapting to dynamic loads such as earthquakes and wind pressure.

Technical Parameters:

FAQ:
